Catalog

Materials, specs & options

Everything we stock and how we build it. Don't see what you need? Reach out - if it's a drawer, we build it.

Stock species

Woods · 14

Solid hardwoods for sides, backs, and fronts. Need a species we don't stock? Just ask.

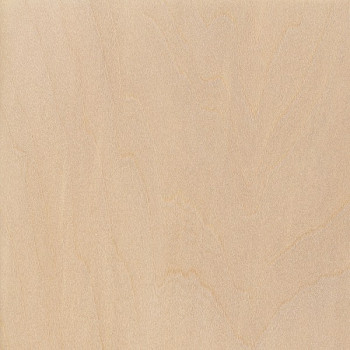

1/2" Basswood
1/2" Hard Maple

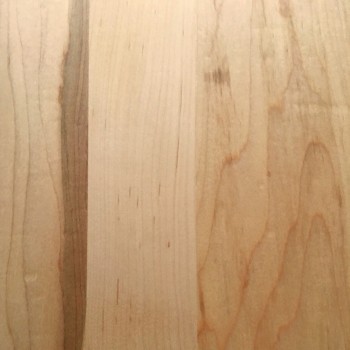

1/2" Natural Hard Maple
5/8" Basswood

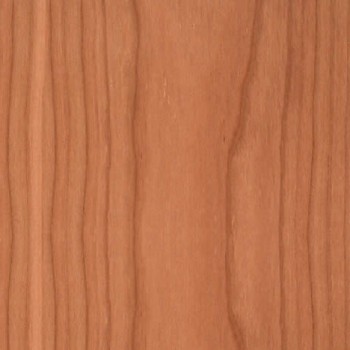

5/8" Cherry

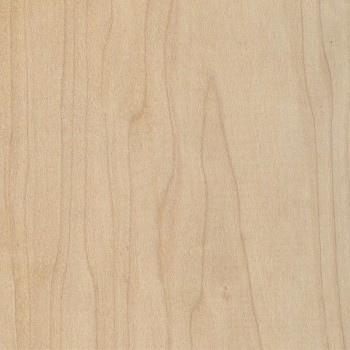

5/8" Hard Maple-Select
5/8" Natural Hard Maple

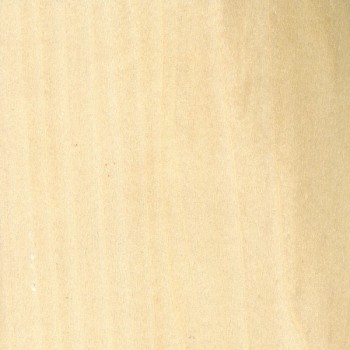

5/8" Poplar

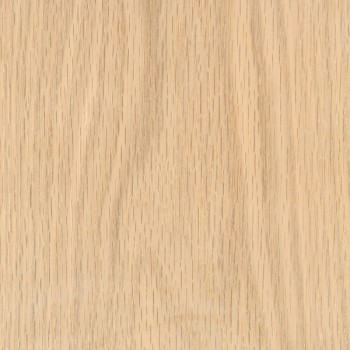

5/8" Red Oak

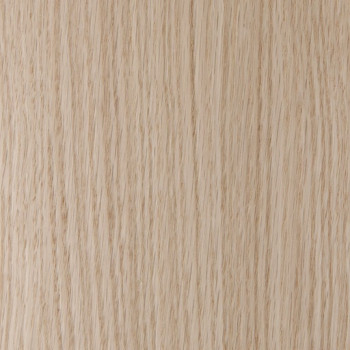

5/8" Rift White Oak

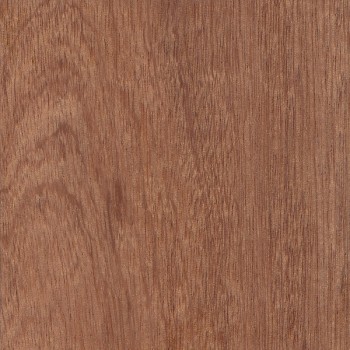

5/8" Sapele

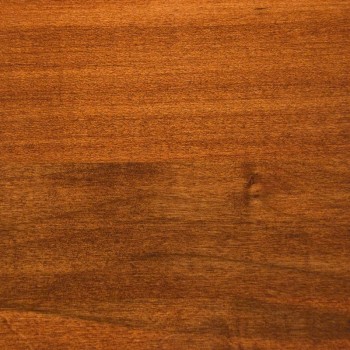

5/8" Stained Maple

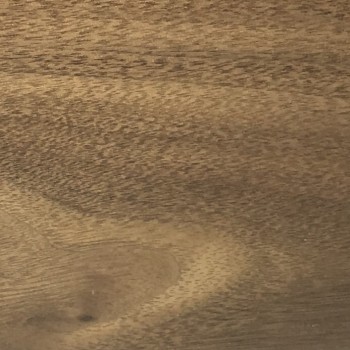

5/8" Walnut

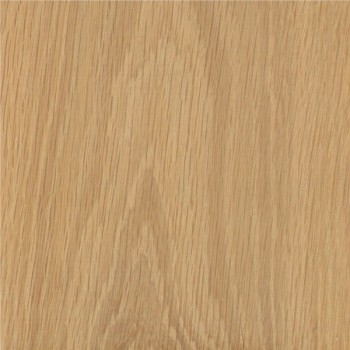

5/8" White Oak

Build envelope

Sizes

Anything inside these ranges is a standard order. Anything outside is a custom quote.

Width

3″ 72″

Custom order above 72″

Depth

6″ 36″

Custom order above 36″

Height

1½″ 30″

Custom order above 30″

Snap to nearest 1/16″ 20 drawers per line 50 options per drawer

Outside the envelope?

Bigger, smaller, curved, angled, corner drawers are all in scope - they just need a hand-priced quote. Send specs and we'll come back, usually same day.

Request a quote

Inside & on the drawer

Details

Bottoms · Grains · Notches · Logos

What sits inside the drawer (bottom, grain direction) and what shows on the outside (slide cutouts, branding).

Drawers ship with a square top edge by default. Pick a different profile under Options if you need one.

Bottoms

The panel that floats in the bottom groove. 1/4" ply is standard; 3/8" is Maple-only; 1/4" clear acrylic for see-through drawers.

1/2" Plywood
1/4 Clear Acrylic
1/4" Plywood
1/4" Veneered MDF
3/4" Plywood
3/8" Plywood-Maple only
None

Grains

Direction the grain runs across the drawer face. Front-to-back is standard; side-to-side and random are priced with the wood, not separately.

Front to back
Random
Side to side

Notches

Slide cutouts and bore-holes machined to brand spec. Pick the brand you're running, or skip the bore holes if you do them yourself.

Accuride
Blum, Hettich
Grass 7m holes
None
Notch only, no holes

Logos

Laser engraving available in the locations listed below. Select your preferred placement, or ask about a custom mark.

None
Side logo (< 2"x2")
Side logo (> 2"x2")
Top edge letters
Top edge logo

How it ships

Finish & assembly

How the drawer arrives - finished or raw, glued up or flat-packed. Choose independently per drawer.

Finish

Clear coat

Standard

Waterborne clear-coat applied in-house. Ready to install on arrival.

Unfinished

Raw drawer, no finish coat. For shops finishing in-house to match a custom stain or paint.

Assembly

Assembled

Standard

Glued and squared in our shop. Stack the drawers in the cabinet and you're done.

Unassembled

Knock-down: pre-dovetailed sides, front, and back, shipped with the bottom - ready for assembly.

Add-ons & customizations

Options

The full add-on catalog - dividers, scoops, cut-outs, custom add-ons, and more.

67 add-ons in the catalog

Scoop FS-RD

A front round scoop. The minimum a drawer width with is 8".
1/8" Top Edge TED-D8

Outside edge only, sides and back.
Edgebanding

Wood matching edgebanding for europlywood drawers
1/8" Top Edge TED-OT8

Inside, sides and the back outside of the drawer.
Cut-out 4.25 x 2.625- AM Co.

Lock cut-out 4.25"W x 2.625"H with3/4"R
Trash Pull Out

A trash pull out. West Containers not included, they must be ordered separatly.
Recessed 1/4" Bottom

Recessed 1/4" Bottom
Angled Sides SHS-SE

Angled sides of the drawer.
U-Shape Drawer

A U-shaped drawer. Please specify all dimensions in the order description, or contact us directly.
Custom Dividers

Custom dividers, please manually get in contact with specifications. Additional fees may apply
Dividers DDV-T4

Cutlery dividers, adjustable and removable with one horizontal 4" from drawer front and three vertical 1/2" thick wood dividers front to back.
Dividers DDV-DT4

Cutlery dividers, adjustable and removable, two horizontal 4" space between, three vertical 1/2" thick wood dividers. Please specify in the order description horizontal dividers location (front or back).
Trash Pull Out With Storage

Trash pull out with storage. West Containers not included, they must be ordered separatly.
Custom Scoop

Please specify in the order description, or contact us directly.
Divider (Vertical) DDV-S2

Removable and adjustable center 1/2" thick wood divider front to back.
Dividers (Vertical) DDV-S3

Two adjustable and removable vertical dividers from front to back.
Custom Cut Out

A special cut out in the drawer. Please specify in the order description, or contact us directly.
Cut-out 4.25 x 2.375 AM Co.

Lock cut-out -4.25"W x 2.375"H -with 3/4" R
File Drawer (Vertical) - Letter Folder

1/8" x 1/2" slots on the front and back of drawer with bars.
File Drawer (Horizontal) - Letter Folder

1/8" x 1/2" slots on the sides of the drawers with bars. File bars running side to side.
Dividers (Vertical) DDV-S4

Adjustable / removable vertical (front to back) three 1/2" thick wood dividers
Blum Locking Device T51.1901

Blum Locking Device for use with 563/569 series runners, height and side to side adjustments.
Angled Sides - SHS-A

Angled sides of the drawer.
File Drawer (Horizontal) - Letter & Legal Folder

1/8" x 1/2" slots on the sides of the drawers with bars. File bars running side to side.
Dividers DDV-1T4L

Cutlery dividers- adjustable, removable 1/2" thick wood dividers
Dividers (Vertical) DDV-S5

Adjustable / removable vertical (front to back) four 1/2" thick wood divid
dividers DDV-1T4R

Rutlery dividers- adjustable, removable 1/2" thick wood dividers
Lowered Drawer Front

The drawer front is 3/4" lower than the sides and back
Dividers ( Horizontal) DDV-HZ4

Removable/adjustable horizontal (side to side ) three 1/2" thick wood dividers
Waste Container (RV508, 50qt, White, Single)

West Container (RV508, 50qt, White, Single)
Special Drawer

No Front/Custom Sides/Extended Bottom
Two Tiered Drawer

Drawer inside the drawer. Full extension side mounted slides included.
Angled Sides -SHS-DE

Angled sides of the drawer.
Knife Tray 18"-21" wide

In drawer knife tray custom fit to the drawer.
Pegboard (8 Pegs)

Pegboard drawer with eight pegs.
Dividers DDV-BL4

Center horizontal and center vertical 1/2" thick wood dividers.
Recessed Flush Bottom

Recessed Flush Bottom
Waste Container (6700-61-B, 30qt, White, Double)

West Container (6700-61-B, 30qt, White, Double)
Custom Finish

A custom finish on the drawer. Please specify in the order description, or contact us directly.
Waste Container (RV358, 35qt, White, Double)

West Container (RV358, 35qt, White, Double)
Divider (Horizontal) DDV-HZ2

Removable and adjustable center horizontal 1/2" thick wood divider from side to side.
Dividers DDV-2T3L

Dividers- one fixed vertical divider 4" from the left side of the drawer, two fixed horixontal and one adjustable
Dividers DDV-2T2LR

Dividers- one fixed horizontal divider 4" from the back of the drawer, one fixed vertical on the middle and one adjustable , it can be placed on the left or right side of the drawer
Spice Drawer Organizer 15''-18" wide

Three shelf solid wood spice organizer- drawer width 18" max
Spice Drawer Organizer 27-30" wide

Three shelf solid wood spice organizer- drawer width 30" max
Dividers DDV-2T3R

Dividers- one fixed vertical divider 4" from the left side of the drawer, two fixed horixontal and one adjustable
Spice Drawer Organizer 18-21" wide

Three shelf solid wood spice organizer- drawer width 21" max
Dividers ( Horizontal) DDV-HZ3

Removable/adjustable horizontal (side to side ) two 1/2" thick wood dividers
Spice Drawer Organizer30-36" wide

Three shelf solid wood spice organizer- drawer width 36" max
Drawer front "Ears"

Pull-out drawer front "ears" used to conceal slides

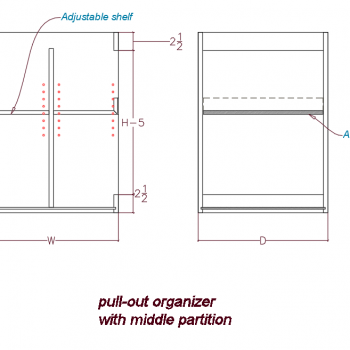

Pull-Out Organizer With Partition

Two adjustable shelves included
Waste Container (RV358, 35qt, White, Single)

West Container (RV358, 35qt, White, Single)
Waste Container (RV206, 20qt, White, Double)

West Container (RV206, 20qt, White, Double)
Waste Container (6700-61-B, 30qt, White, Single)

West Container (6700-61-B, 30qt, White, Single)
File Drawer (Vertical) - Letter & legal folder

1/8" x 1/2" slots on the front and back of drawer with bars. File bars running front to back.
Spice Drawer Organizer 12''-15" wide

Three shelf solid wood spice organizer- drawer width 15" max
Spice Drawer Organizer 21-24" wide

Three shelf solid wood spice organizer- drawer width 24" max
Spice Drawer Organizer 24-27" wide

Three shelf solid wood spice organizer- drawer width 27" max
KNIFE TRAY 15"-18" WIDE

In drawer knife tray custom fit to the drawer
KNIFE TRAY 12"-15" WIDE

In drawer knife tray custom fit to the drawer
KNIFE TRAY 21"-24" WIDE

In drawer knife tray custom fit to the drawer
Blum Locking Device T51.1801

TANDEM plus adjustable depth locking device set for inset drawers.
Lock Cut-Out

A cut out in the drawer for a lock. Cuttout dimensions required. Please provide all info in the "NOTES" for each ordered drawer
Curved Drawer CRVD-CV

A curved convex drawer. Drawer must have a 10" width minimum. Specify radius in order description.
Waste Container (RV206, 20qt, White, Single)

West Container (RV206, 20qt, White, Single)
Corner Drawer CD-B

A corner drawer with a minimum of 15" depth and 10" width.
Curved Drawer CRVD-CC

A curved concave drawer. Drawer must have a 10" width minimum. Specify radius in order description.
